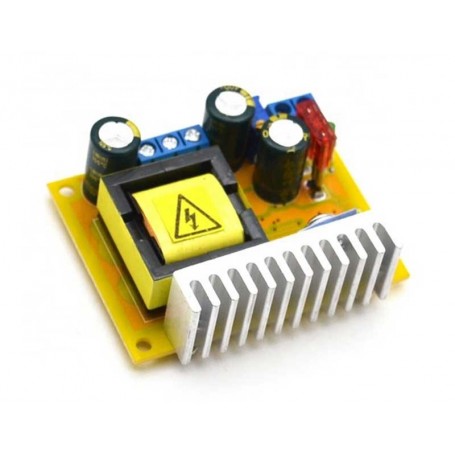

Modul step up DC-DC 8-32V la 45-390V 780V
zoom_out_map
chevron_left chevron_right

Modul step up DC-DC 8-32V la 45-390V 780V

40,92 lei
cu TVA
  • Plata in siguranta, ramburs sau cu cardul! Plata in siguranta, ramburs sau cu cardul!
  • Livrarea din stoc in 1-2 zile! Livrarea din stoc in 1-2 zile!
  • Garantie la toate produsele! Garantie la toate produsele!

Descriere

Input voltage: 10-32V input (Suitable for width voltage input range)
Input Current: 5A (MAX)
Quiescent current: 15mA
Output voltage: 45-390V 780V Dual Output continuously adjustable.
Output Current: 0.2A MAX
Output Power: 40W (peak 70W)
Working temperature: -40 ~ + 85 degrees
Operating frequency: 75KHz
Conversion efficiency: up to 88%

Fisa tehnica

M-12915
