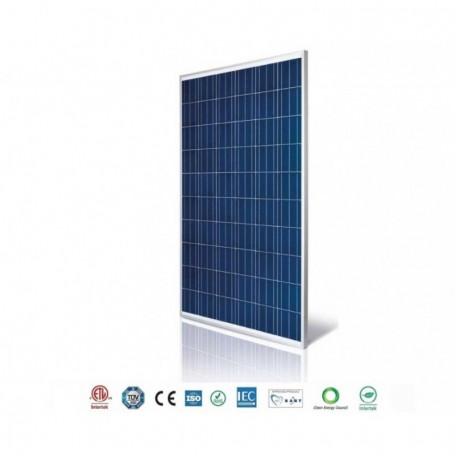

PANOU SOLAR 280W
zoom_out_map
chevron_left chevron_right
-183,00 lei

PANOU SOLAR 280W

749,70 lei 932,70 lei - 183,00 lei
cu TVA

local_shipping Transportul gratuit la comenzi de peste 250 lei!

  • Siguranta maxima pe durata transportului! Siguranta maxima pe durata transportului!
  •  Livrarea in maxim 1-3 zile lucratoare! Livrarea in maxim 1-3 zile lucratoare!
  • Garantie la toate produsele! Garantie la toate produsele!

Descriere

Cell Type Polycrystalline Solar Cell

Rated Maximum Power (Pmax) 280W

Tolerance 0~+3%

Voltage at Pmax(Vmp) 31.8V

Current at Pmax(Imp) 8.81A

Open-Circuit Voltage(Voc) 38.00V

Short-Circuit Current(Isc) 9.45A

Maximum System Voltage 1000VDC

Maximum Series Fuse Rating 20A

Operating Temperature -40°C to +85°C

Weight(kg) 18kg

Dimension(mm) 1640*992*35mm

Manufacture Warranty 10years

Performance Warranty >90% after 10years , >80% after 25 years

standard test condition AM = 1.5, E = 1000W/m2, TC = 25°C

Fisa tehnica

z-004
