Controler panou solar 12/24V 60A mini dual USB

94,55 lei
cu TVA
  • Plata in siguranta, ramburs sau cu cardul! Plata in siguranta, ramburs sau cu cardul!
  • Livrarea din stoc in 1-2 zile! Livrarea din stoc in 1-2 zile!
  • Garantie la toate produsele! Garantie la toate produsele!

Descriere

    PWM only charge for 12V 24V lead acid battery (automatic identification)





Description:





  PWM10 PWM20 PWM30 PWM40 PWM50 PWM60
Charging Current 10A 20A  30A 40A 50A 60A
Discharging Current 10A 20A  30A 20A 30A 30A
Max Solar input 46V(for 24V battery) 23V(for 12V battery)
Equalization  14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge 13.7V(defaul,adjustable)
Discharge stop 10.7V(defaul,adjustable)
Discharge reconnect 12.6V(defaul,adjustable)
USB output 5V/3A max
Mounting holespacing 147mm*60mm
Dimensions 133*70*35mm
Packing Size 150*80*40mm
Packing Weight 170g
Self-consum  <10mA
Operating temperature -35°C~+60°C
Installation linenumber ≤5#AWG(6mm2)
Storage temperature -40℃-70℃



Note:

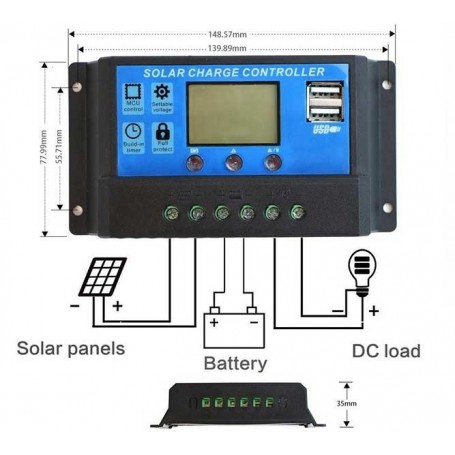

Connect BATTERY FIRST, then Connect LOAD and SOLAR PANEL. It will help the controller
recognize the battery voltage.

When you Disconnect the controller, please remove the SOLAR PANEL,and LOAD, then remove the BATTERY.
