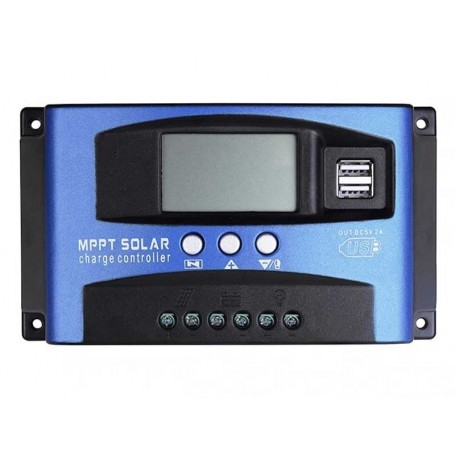

Controler panou solar 12/24V 30A dual USB MPPT
zoom_out_map
chevron_left chevron_right

Controler panou solar 12/24V 30A dual USB MPPT

250,25 lei
cu TVA

local_shipping Transportul gratuit la comenzi de peste 250 lei!

  • Siguranta maxima pe durata transportului! Siguranta maxima pe durata transportului!
  •  Livrarea in maxim 1-3 zile lucratoare! Livrarea in maxim 1-3 zile lucratoare!
  • Garantie la toate produsele! Garantie la toate produsele!

Descriere

Work for 12V/24V lead acid/12V lithium battery





Description:





  MPPT30 MPPT40 MPPT50 MPPT60 MPPT100
Charging Current 30A 40A  50A 60A 100A
Discharging Current 10A 20A  20A 30A 50A
Solar photovoltaic voltage 12V with 18V solar panel 24V with 36V solar panel
Equalization  14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge 13.7V/27.4V
Discharge stop 10.7V/21.4V
Discharge reconnect 12.6V/25.2V
USB output 5V/2A
Dimensions 170*92*45mm
Packing Size 175*100*47mm
Packing Weight 320g
Self-consum  <10mA
Operating temperature -35°C~+60°C
Installation linenumber ≤5#AWG(6mm2)



Menu key: switch parameter display interface and settings
Upturn: press this key once to add a level to the corresponding parameter
Down: press this button once to decrease the corresponding parameter down one level



Setup Description:



1. Press the menu key in the main interface, select the interface to adjust the corresponding parameters and set the working state of the equipment.
2. Working mode of load, COT manual mode load output, AUTO automatic light control mode. 00: 58 Set the output time after no sunlight.
3. Set the real-time working status: D 13.1 V the battery voltage value display, D 29.1 ℃ temperature display, D2.1A solar charging current display, large current charging arrow flows fast, and vice versa. The d0.0a output load current dispaly, the large current discharge arrow flows fast and vice versa.

Fisa tehnica

M-13047
