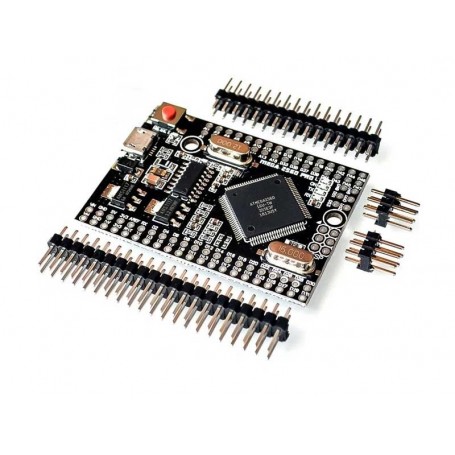

Modul dezvoltare Mega2560 Mini CH340g

Mega2560 Pro ATmega2560-16AU USB CH340G Smart Electronic Development Board

Embedded Mega 2560 CH340G / ATmega2560-compatible with Mega 2560 motherboard. Based on Atmel ATmega2560 microcontroller and USB-UART interface chip CH340G.

The circuit board size is compact, the size is 38x55mm. This is a good solution to make your final project on a soldered prototype board.

The main board function is similar to Arduino Mega 2560. It is an embedded main board, but it is also stable, and uses the original chip ATmega2560 (16 MHz).

The board uses the chip CH340G as the converter UART-USB. When you work at a frequency of 12Mhz, provide stable data exchange results (need to install the driver to the computer).

Mega PRO (embedded) 2560 CH340G / ATmega2560-Connect to computer via microUSB cable (applicable to almost all Android smartphones).

You can power the board or the pins through the MicroUSB connector. Voltage regulator (LDO) can handle 6V to 9V (peak 18V) DC input voltage. The output current is 5V-about 800mA, 3.3V-about 800mA (please note that the higher the input voltage, the lower the output current). This will provide reliable motivation for most of your initial project
