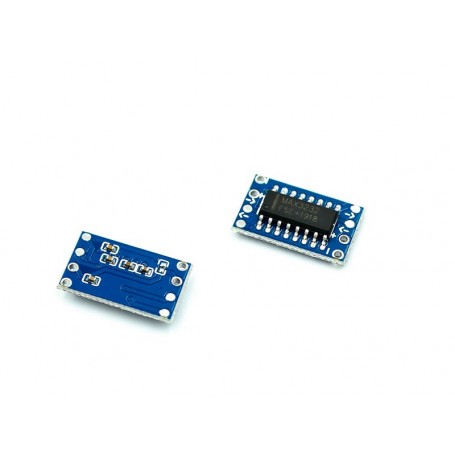

Modul convertor USB la RS232 MAX3232 TTL

2,25 lei
cu TVA
  • Plata in siguranta, ramburs sau cu cardul! Plata in siguranta, ramburs sau cu cardul!
  • Livrarea din stoc in 1-2 zile! Livrarea din stoc in 1-2 zile!
  • Garantie la toate produsele! Garantie la toate produsele!

Descriere

Technical Parameters:





Chip: domestic MAX3232CSE





Voltage range: 3V~5V





Baud rate: It is recommended not to be higher than 120kbps





Size: 9.4mm*15.9mm





The following is a diagram of the front and back of the module. The power supplies on both sides are connected together, and you only need to connect one side. Two independent channels on both sides can be used. The arrow indicates the signal flow direction, the inside indicates the input, and the outside indicates It is output, near RS232 character end is RS232 level, close to TTL character end is TTL level























Module size drawing, the pad spacing is the standard 2.54mm




Fisa tehnica

M-13793
