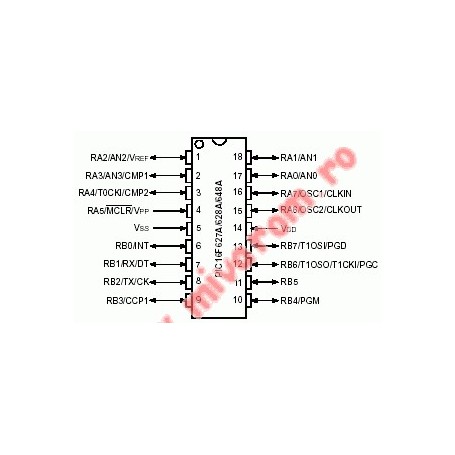

PIC16F628A-I/P

8-bit Microcontroller with 3584 bytes (2k x 14) Programmable Flash

The PIC16F628A is an 18-pin Flash-based member of the PIC16F62x family of fully static CMOS 8-bit microcontrollers. It is upward compatible with the PIC16F628, PIC16C62xA, PIC16C5x and PIC12Cxxx devices. Features include a 4 MHz internal oscillator, 128 bytes EEPROM data memory, capture/compare/PWM, USART, 2 comparators, and programmable voltage reference.

Microchip PIC16F628A Microcontroller Features

High-Performance RISC CPU

•

• Lead-free; RoHS-compliant

• Operating speed: 20 MHz

• Operating voltage: 3.0-5.5V

• Industrial temperature range (-40?° to +85?°C)

• Interrupt capability

• 8-level deep hardware stack

• Direct, Indirect and Relative Addressing modes

• 35 single-word instructions

  •

  • All instructions single cycle except branches




Special Microcontroller Features

•

• Flash Memory: 3584 bytes (2048 words)

• Data SRAM: 224 bytes

• Data EEPROM: 128 bytes

• Internal and external oscillator options

  •

  • Precision internal 4 MHz oscillator factory-calibrated to ?±1%

  • Low-power internal 48 kHz oscillator

  • External Oscillator support for crystals and resonators



• Power-saving Sleep mode

• Programmable weak pull-ups on PORTB

• Multiplexed Master Clear/Input-pin

• Watchdog Timer with independent oscillator for reliable operation

• Low-voltage programming

• In-Circuit Serial Programming (via two pins)

• Programmable code protection

• Brown-out Reset

• Power-on Reset

• Power-up Timer and Oscillator Start-up Timer

• High-Endurance Flash/EEPROM cell

  •

  • 100,000 write Flash endurance

  • 1,000,000 write EEPROM endurance

  • 40-year data retention




Peripheral Features

•

• 16 I/O pins with individual direction control

• High current sink/source for direct LED drive

• Analog comparator module

  •

  • Two analog comparators

  • Programmable on-chip voltage reference module

  • Selectable internal or external reference

  • Comparator outputs are externally accessible



• Timer0: 8-bit timer/counter with 8-bit programmable prescaler

• Timer1: 16-bit timer/counter with external crystal/clock capability

• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

• Capture, Compare, PWM module

  •

  • 16-bit Capture/Compare

  • 10-bit PWM



• Addressable USART/SCI
