MULTISWITCH 5/6 EMP-CENTAURI
zoom_out_map
chevron_left chevron_right

MULTISWITCH 5/6 EMP-CENTAURI

500,50 lei
cu TVA
  • Plata in siguranta, ramburs sau cu cardul! Plata in siguranta, ramburs sau cu cardul!
  • Livrarea din stoc in 1-2 zile! Livrarea din stoc in 1-2 zile!
  • Garantie la toate produsele! Garantie la toate produsele!

Descriere

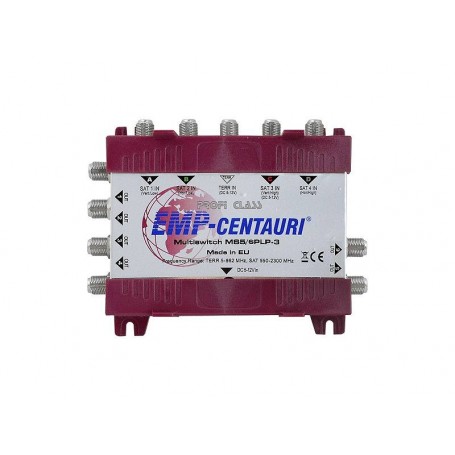

MULTISWITCH 5/6 EMP-CENTAURI / SPACETRONIK PLP-3.
PROFI CLASS is a line of products from the Czech manufacturer EMP-centauri, equipment manufactured in Europe, designed to meet the highest customer requirements. These products have an extended temperature range, and adjustable attenuation on each of the inputs.

Advantages of the PROFI CLASS:
- Extended temperature range
- All multiswitches offer input attenuators, selectable active / passive processing
- Support for Quttro and Quad LNBs
- Power switch 12V ON / OFF for terrestrial antenna preamplifier
- Compatible with DiSEqC 2.0 and below

A compact, very small multiswitch, which is used to sum terrestrial TV signals and one satellite. It has four satellite inputs. with LNB Quattro, one signal input from the dvb-t antenna, and six summed outputs. with Quattro LNB. Equipped with an additional DC 9-20V power socket that allows you to connect the power supply, e.g. to power the antenna preamplifier. External power supply is not needed in the case of passive antennas.








LNB input frequency range950 - 2300 MHz
Terr. Frequency range contribution5 - 862 MHz
Output frequency range5 - 2300 MHz
Control13/18 V + 0/22 kHz
Attenuation Sat3 dB, average
Suppression Terr.Average 15 dB
Input isolation20 dB min
Input level Sat / Terr.90/105 dBuV average
Maximum output level Sat.87 dBuV average
Maximum output level Terr.Average 90 dBuV
Power consumption55 mA (18V)
Dimensions13.5 x 10.4 x 4.1 cm
Temperature range-30 .... 70 degrees C

Fisa tehnica
