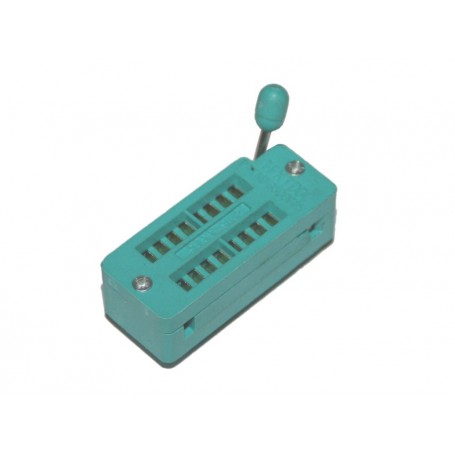

Soclu DIP ZIF 16pini
4,18 lei
cu TVA
-
Plata in siguranta, ramburs sau cu cardul!
-
Livrarea din stoc in 1-2 zile!
-
Garantie la toate produsele!
Descriere
DOUBLE DIP SOCKET 2.54mm(0.100’’)
Material:Housing:30% Glass filled PBT UL94V-0
Contacts:Phosphor Brone
Plating(Gold plated):3u’’ over 50u’’ nickel
(Tin plated):100u’’ over 50u’’ nickel
Electrical Characteristics:Current Rating:1 AMP
Insulator Resistance:5000MΩ min, at DC 500V
Contact Resistance:20mΩ max, at DC 100mA
Operating Temperature:-55°C~+105°C
Features:For DIPs with.100’’ lead spacing.
Lever actuated zero inserrtion force mechanism.
Socket easily disaaaembles for repairability.
Socket contact point of.110’’ bellow top surface of socket.
Material:Housing:30% Glass filled PBT UL94V-0
Contacts:Phosphor Brone
Plating(Gold plated):3u’’ over 50u’’ nickel
(Tin plated):100u’’ over 50u’’ nickel
Electrical Characteristics:Current Rating:1 AMP
Insulator Resistance:5000MΩ min, at DC 500V
Contact Resistance:20mΩ max, at DC 100mA
Operating Temperature:-55°C~+105°C
Features:For DIPs with.100’’ lead spacing.
Lever actuated zero inserrtion force mechanism.
Socket easily disaaaembles for repairability.
Socket contact point of.110’’ bellow top surface of socket.
Fisa tehnica
M-7902
