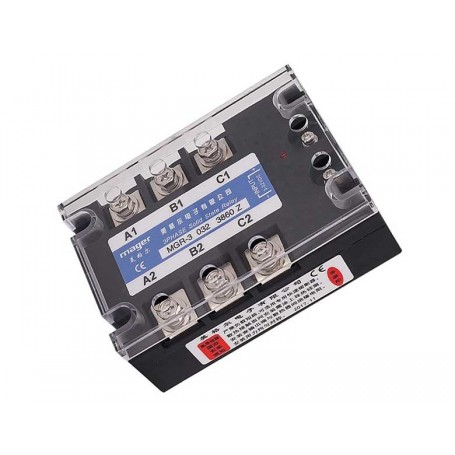

Releu solid State 60A trifazic 3860Z

Features:

Solid state relay (SSR) abbreviations electronic non-contact switch, the main characteristics of tiny control input signal, the direct drive high current load. Product is used widely, advantages: long life, non-contact, no spark, no noise, no electromagnetic interference, fast switching speed, strong anti-interference ability, reliable operation, and small size, resistant to vibration, explosion-proof, anti-corrosion, can compatible with TTL, DTL, HTL integrated circuit.

Insufficient at present is mainly the output contact not like contactor which yao, only one group; Over 60 a additional load due to the pressure drop, temperature rise quickly, it is important to note that the cooling, you also can choose special solid heat dissipation

Type:SSR MGR-3 3860Z
Control: DC-controlled AC
Load current: 60A
Load voltage: 380VAC
Control voltage: 3-32VDC
Control current: 10-68MA
Power off time: <= 12ms
Dielectric pressure: 2500VAC
Ambient temperature: -30 ~ 75C
Installation: bolted
Working instructions: LED
