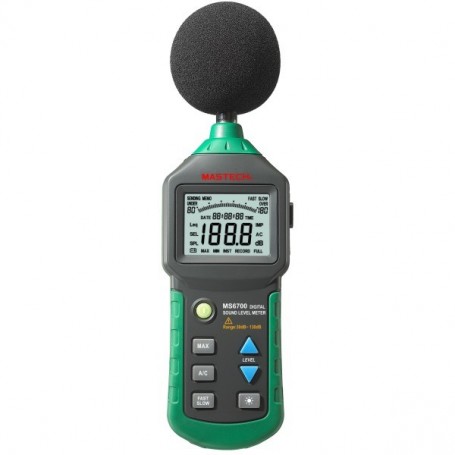

Decibelmetru MS6700 Mastech
zoom_out_map
chevron_left chevron_right

Decibelmetru MS6700 Mastech

493,49 lei
cu TVA
  • Plata in siguranta, ramburs sau cu cardul! Plata in siguranta, ramburs sau cu cardul!
  • Livrarea din stoc in 1-2 zile! Livrarea din stoc in 1-2 zile!
  • Garantie la toate produsele! Garantie la toate produsele!

Descriere


  • Accuracy: +-1.5dB
  • Response frequency: 31.5Hz-8kHz
  • Dynamic range: 50dB
  • Frequency Weighting : A\C
  • Time weighting: FAST 125ms, SLOW 1sec
  • Microphone: Electret Condenser microphone
  • Digital display: 4 digitals, resolution 0.1dB, sampling rate 2 times/s
  • Analog bar display: Each analog bar is as 1 dB, sampling rate 2 times/s
  • Measurement ranges: 30-80dB, 40-90dB, 50-100dB, 60-110dB, 70-120dB, 80-130dB, Total of 6 ranges
  • Auto-range: Micro-computer can choose the best measurement ranges
  • Over range indicator: UNDER (less than range) and OVER (over range)
  • AC signal output: 0.707 Vrms at FS (Auto-range mode isn't included) Output impedance approx. 600Ω
  • DC signal output: 10mV/dB Output impedance approx.100Ω
  • Power supply: Four LR03 AM4 1.5V SIZE AAA alkaline cells
  • Power life: About>35hrs (alkaline cells) Cintinuous operation
  • AC adapter: Voltage 9vDC
    Voltage ripple < 100mVpp
    Supply Current >100mADC
    Socket pin Ground
    Casing positive
    External Diameter 3.5mm
  • Operating temperature: 0℃ to 40℃
  • Operating humidity: 10~80%RH
  • Storage temperature: -10℃ to 60℃
  • Storage humidity: 10 to 70%RH
  • Dimensions:245(L)x80(W)x35(H)mm
  • Weight : Approx. 350g (including battery)
  • Accessories: Earphone plug, Operation manual, Battery, Windscreen.
  • Certificate: CE(EMC) RoHS
  • Display: 2000 counts
  • Data Logging: 16000 records
  • Auto Ranging
  • Auto Power Off
  • AC Singal Output: 0.707 Vrms at FS (Auto-range mode isn't included) Output impedance approx. 600Ω
  • DC Singal Output: 10mV/dB Output impedance approx. 100Ω
  • AC Adapter
    -Voltage 9VDC
    -Voltage Ripple <100m Vpp
    -Supple Current >100m ADC
    -Socket : pin Ground
    -Casing Positive
    -External Diameter 3.5mm
  • Fast
  • Low
  • A Weighting
  • B Weighting
  • Date and Time Display
  • MAX
  • Data Hold
  • Display Backlight
  • Low Battery Display
  • Analog Bar Indication
  • Over Range Indication
  • Resolution 0,1dB
  • Accuracy +-1,5dB
  • Sample rate 2/sec

Fisa tehnica
