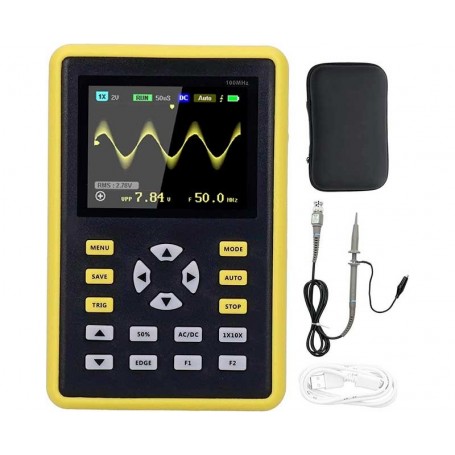

Osciloscop 100Mhz portabil cu accu 5012H

872,83 lei
cu TVA
Inchide
  • Plata in siguranta, ramburs sau cu cardul! Plata in siguranta, ramburs sau cu cardul!
  •  Livrarea din stoc in 1-2 zile! Livrarea din stoc in 1-2 zile!
  • Garantie la toate produsele! Garantie la toate produsele!

Descriere

The FNIRSI-5012H is a versatile, highly practical, cost-effective handheld oscilloscope for the maintenance industry and the R&D industry with FNIRSI's real-time sampling rate of up to 500MS/s and 100MHz analog bandwidth.With full trigger function (single, normal, automatic), it can be used freely for both periodic analog signals and non-periodic digital signals. The built-in high voltage protection module can  withstand  up to 400V continuous voltage and 600V peak voltage. There is no need to worry about the oscilloscope burnout caused by the high voltage not being probed to the 10X position.Large time base scan mode that monitors slow level changes. Equipped with high-efficiency one-button AUTO, the measured waveform can be displayed without complicated adjustment. Display high-definition LCD screen with 2.4-inch 320*240 resolution IPS full-vision technology, the visual effect is very good. Extremely convenient and fast waveform storage function, built-in 64M storage space, can store up to 2000 waveform pictures, the storage process is simple and fast, save the current waveform anytime and anywhere, just one touch, no cumbersome tips and choices. Powerful waveform file manager, support for thumbnail browsing, viewing, detail viewing, page turning, deletion and more. Built-in 5000mah high-quality lithium battery, can be used continuously for 12 hours when fully charged.The body is equipped with high-quality silicone protective cover, non-toxic and lead-free environmental protection, anti-skid, anti-shock and shockproof, comprehensive protection of the fuselage, soft texture, feel very comfortable.





Key Features:





1:Intelligent anti-burn,1X Can withstand up to 600V withstand voltage


2:Afterglow display technology


3:2.4 inch color display screen with IPS technology


4:100MHz analog bandwidth @ 500MS/s sampling rate(1X = 5MHz,10X = 100MHz)


5:One-button waveform storage


6:Built-in 64M storage space, the maximum storage of 2000 waveform pictures


7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions


8:High measurement voltage range, 1X can measure 0 ~ 80 V, 10X can measure 0 ~ 800V


9:Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time


10:At any time, the waveform display (pause function) is frozen


11:Equipped with high efficiency One-button AUTO


12:Complete triggering function (single, normal, automatic)


13:Built in 5000mAh rechargeable lithium battery,Fully charged for 12 hours of continuous use


14:Screen brightness adjustment


15:Memory compression technology, waveform refresh screen does not flicker


16:Anti-slip anti-drop silicone sleeve


17:Ultra small volume, easy to carry





Specifications:





1:Analog band width: 100MHz


2:Maximum real time sampling rate: 500MS/s


3:Vertical sensitivity: 50 mV/div ~ 100 V/div


4:Horizontal time base range: 50S/div ~ 6nS/div


5:Maximum test voltage: 80 V (1X probe), 800 V (10X probe)


6:Storage depth: 128KB


7:Input resistance: 1M


8:ADC precision: 8bits


9:Coupling mode: AC/DC


10:Trigger mode: Single, Normal, Auto


11:Trigger edge: Ascending/descending edge


12:External trigger voltage 0 – 80 V


13:Display: 2.4 inch - 320*240 - IPS process


14:Power supply: 5000 mAh lithium battery


15:Size: 114mm x 74mm x 33mm


16:Weight: 300g





Package Includes:


1 x ADS5012H Oscilloscope Host


1 x Matching 100MHz Probe(1X and 10X)


1 x Micro USB Data Line


1 x User Manual (English)


1 x High Quality Package
