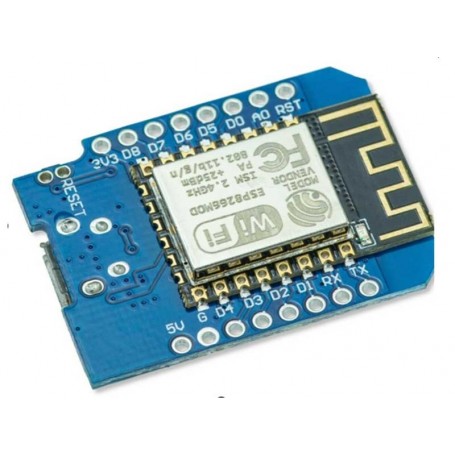

Modul Wifi IoT ESP8266 ESP-12F
zoom_out_map
chevron_left chevron_right

-10%

Modul Wifi IoT ESP8266 ESP-12F

23,40 lei 26,00 lei -10%
cu TVA
Inchide
  • Plata in siguranta, ramburs sau cu cardul! Plata in siguranta, ramburs sau cu cardul!
  • Livrarea din stoc in 1-2 zile! Livrarea din stoc in 1-2 zile!
  • Garantie la toate produsele! Garantie la toate produsele!

Descriere

Warnings:

1.This module requires a 3.3 volt supply for VCC, and 3.3V logic.

2.It is not 5V tolant,Connect RX or TX on 5V for Arduino will destroy this module.

3.You must use a logic level converter, or a 3.3V for Arduino
4.The 3.3V supply on the for Arduino Uno has inadequate current capabilit to power this module.

5.You must provide a separate,higher 3.3V supply(about 300mA or better)





ESP-12F



  • Type:ESP-12F
  • Standards Certification: FCC / CE / TELEC
  • Wireless standards: 802.11 b / g / n
  • Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)
  • Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM
  • Operating voltage: 3.0 ~ 3.6V (recommendation 3.3V)
  • Working Current: Average: 80mA
  • Operating temperature: -40 ° ~ 125 °
  • Storage temperature: Nomal temperature

Fisa tehnica

M-13939
