Senzor praf optic

53,33 lei 59,25 lei -10%
cu TVA
Inchide
  • Plata in siguranta, ramburs sau cu cardul! Plata in siguranta, ramburs sau cu cardul!
  • Livrarea din stoc in 1-2 zile! Livrarea din stoc in 1-2 zile!
  • Garantie la toate produsele! Garantie la toate produsele!

Descriere

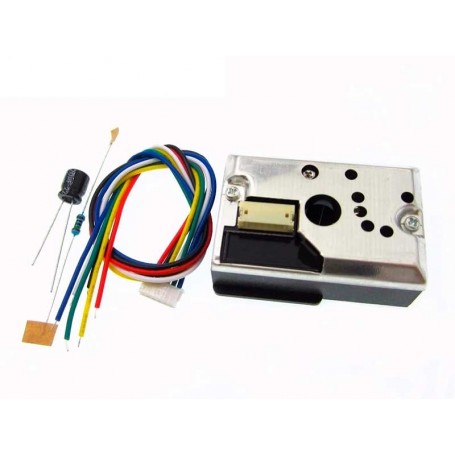

Product Name: GP2Y1010AU0F dust sensor module

Technical parameters:

Power supply voltage: DC5 2V

Operating Current: 20mA (peak)

Sensitivity: 0.5V / (0.1mg / m3)

The minimum detection level of particles: 0.8 m

Clean air voltage: 0.9V typ.

Working temperature: -10 ~ 65

Storage temperature: -20 ~ 80

Size: 46mm × 30mm × 17.6mm

Size Weight: 15g

Uses: mainly used for dust removal equipment alarm equipment, air purification equipment, dust robots, fire alarm, etc. industry equipment can detect smoke particles, pollen spores and other particles;






  • ShP GP2Y1010AU0F Dust Sensor *1




  • Cable *1




  • 150ohm resistor *1




  • 16v220uF capacitor *1




  •




Fisa tehnica
